| Nokia 5700 XpressMusic | |
|---|---|
| |
| Announced | 29 March 2007 |
| Phone Type | Special |
| Operating System | S60 3rd Edition FP1 |
| Communication | GSM Quad-Band, EDGE
WCDMA 2100, UMTS Bluetooth 2.0 +EDR |

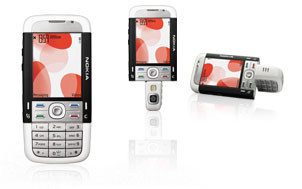

The Nokia 5700 XpressMusic is a GSM/WCDMA dual mode phone supporting EGSM 850/900/1800/1900 and WCDMA 2100 or GSM 850/900/1800/1900 for some regions. Twist the Nokia 5700 XpressMusic for instant access to music, the 2 megapixel camera with flash, video viewing or video calls. The Nokia 5700 XpressMusic has a 2,2” color QVGA (240 x 320 pixels) 16 million color screen, built-in stereo speakers, Bluetooth stereo headphone support, USB 2.0, Infrared and support for Java MIDP 2.0 & CLDC1.1
| Technical Specs | |
|---|---|
| Developer Platform | S60 3rd Edition, Feature Pack 1 |
| Operating System | Symbian OS v9.2 |
| Screen Resolution | 240 x 320 pixels |
| General | |
| Screen Resolution | 240 x 320 pixels |
| Screen Color Depth | 24 bits |
| Device Size | 108 x 50 x 17 mm |
| Weight | 115 g |
| Other Keys | 2 Labeled Soft Keys
5-way Scrolling Media Keys |
| Frequency Bands | GSM 1800
GSM 1900 GSM 850 GSM 900 WCDMA Band I (2100) |
| Data Bearers | CSD
EGPRS GPRS HSCSD WCDMA |
| Regional Availability | Africa, Asia-Pacific, Europe, Latin America, Middle East |
| CPU Count | Single CPU |
| CPU Type | ARM 11 |
| CPU Clock Rate | 369 MHz |
| Developer Page Link | Developer Home Page |
| Remote Device Access Service | Link to the Service |
| Extra Features | |
| Extra Features | Nokia Store
PoC (Push-to-talk over Cellular) Presence Stereo FM Radio Stereo Handsfree Speakers Still Image Editor SyncML Themes Visual Radio |
| APIs | |
| Java Technology | JSR 139 Connected, Limited Device Configuration (CLDC) 1.1
JSR 118 MIDP 2.0 JSR 185 Java™ Technology for Wireless Industry JSR 75 FileConnection and PIM API 1.0 JSR 82 Bluetooth API JSR 135 Mobile Media API JSR 172 J2ME™ Web Services Specification JSR 177 Security and Trust Services API for J2ME™ 1.0 JSR 179 Location API for J2ME™ 1.0 JSR 180 SIP API for J2ME™ JSR 184 Mobile 3D Graphics API for J2ME™ JSR 205 Wireless Messaging API 2.0 JSR 226 Scalable 2D Vector Graphics API JSR 234 Advanced Multimedia Supplements Nokia UI API |
| Java API Access Permissions | Java API Access Permissions |
| Product ID | 0x20002D7C |
| Certificates | Symbian A, Symbian B, Symbian C, Symbian D, UTI Root |
| Browser, Flash and Web Technologies | |
| UAProfile Link | Profile |
| Example User Agent Header | Mozilla/5.0 (SymbianOS/9.2; U; Series60/3.1 Nokia5700/4.21; Profile/MIDP-2.0 Configuration/CLDC-1.1 ) AppleWebKit/413 (KHTML, like Gecko) Safari/413 |
| Browser Details | HTML over TCP/IP
OSS Browser WAP 2.0 XHTML over TCP/IP |
| Flash Technology | Flash Lite 2.0 |
| Multimedia | |
| Multimedia Codecs in Detail | Codec |
| Camera Resolution | 1600 x 1200 pixels |
| Camera Digital Zoom | 4 x |
| Camera Focal length | 4.9 mm |
| Camera F-Stop/Aperture | f/2.8 |
| Camera Focus range | 70 cm to infinity |
| Camera Image Formats | JPEG/Exif |
| Camera Features | Flash, Self Timer |
| Video Recording Resolution | 320 x 240 pixels |
| Video Recording Frame Rate | 15 fps |
| Video Digital Zoom | 4 x |
| Video Recording Formats | H.263, MPEG-4 |
| Video Features | Video Call
Video Editor Video Player Video Recorder Video Sharing Video Streaming |
| Video Playback Formats | 3GPP formats (H.263), H.264/AVC, MPEG-4, RealVideo 7,8,9/10 |
| Graphic Formats | BMP, EXIF, GIF87a, GIF89a, JPEG, JPEG 2000, PNG, WBMP |
| Audio Features | Audio Equalizer
Audio Recorder AMR Audio Streaming Music Player Stereo |
| Audio Formats | AAC, AAC+, AMR-NB, AMR-WB, HE-AAC v2, M4A, MIDI Tones (poly 64), Mobile XMF, MP3, MP4, RealAudio 7, 8, 10, SP-MIDI, True tones, WAV, WMA |
| Memory Functions | |
| Maximum User Storage | 35 MB |
| Free Executable RAM Memory | 18 MB |
| ROM Memory | 128 MB |
| RAM Memory | 64 MB |
| Memory Card type | Micro SD |
| Memory Card Features | Hot Swap |
| Maximum Memory Card Size | 2 GB |
| Maximum Heap Size | Unlimited |
| Maximum JAR Size | Unlimited |
| Connectivity | |
| Local Connectivity | Bluetooth 2.0 +EDR
Bluetooth Stereo Audio Infrared Mini USB Nokia AV 2.5mm USB 2.0 USB Cable Nokia DKE-2 |
| Bluetooth Profiles | A2DP, AVRCP 1.0, BIP, BPP, DUN, FTP, GAVDP, GOEP, HFP, HSP, OPP, SAP |
| Messaging | |
| Messaging | IM, MMS, MMS+SMIL, SMS |
| Supported Email Protocols | IMAP4, POP3, SMTP |
| Supported Document Formats | Excel, PDF, Powerpoint, Word, Zip |
| Power Management | |
| Power Management | 2.0mm Charger Connector |
| Battery model | BP-5M 3.7V 900mAh |
| GSM Talk Time up to | 3.5 hours |
| WCDMA Talk Time up to | 2.5 hours |
| GSM Standby Time up to | 288.0 hours |
| WCDMA Standby Time up to | 288.0 hours |
| Other | |
| OMA Device Management | OMA Client Provisioning v1.1
OMA Device Management v1.1.2 |
| Synchronization | OMA Data Synchronization v1.2 |
| Digital Rights Management | OMA DRM Forward Lock
OMA DRM v1.0 OMA DRM v2.0 Windows Media DRM 10 |
| DRM Delivery Method | HTTP Download
MMS OMA Download |
